LOCKING ELEMENTS - SWLE 200C TYPE

  • Advantages
    -SWLE200-C can be used in connecting the shaft and boss when it requires as ultra high transmissible torque.
    - No axial shift while assembling
    - Required shaft : Ø 25 ~ Ø 100 mm
  • Usage
    - Large scale pulley
    - Driver of each press
  • Features
    - Material : DIN C45, JIS S45C, KS SM45C
    - Hardness : HRC 22 ~ 25
    - Surface treatment : Barrel grinding

Dimensions (mm)

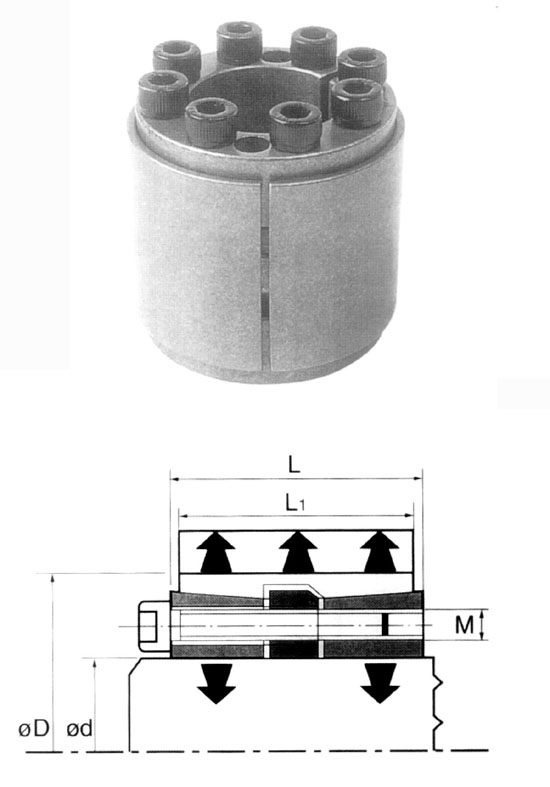

SWLE 200C
d x D
Dimensions
Torque
Nm
Axial Thrust
KN
Screws
Nm
Surface Torque
N/nm2
M 6
L1
L
25 x 50
M 6
45
51
900
70
17
90
30 x 55
M 6
45
51
1,100
70
17
90
35 x 60
M 6
45
51
1,600
90
17
110
40 x 65
M 8
45
51
2,400
120
17
110
45 x 75
M 8
45
51
3,300
150
41
140
50 x 80
M 8
64
72
4,250
160
41
100
30 x 90
M 8
64
72
6,100
200
41
120
70 x 110
M 10
78
88
10,800
320
83
130
80x 120
M 10
78
88
14,500
360
83
130
90 x 130
M 10
78
88
18,100
390
83
130
100 x 145
M 12
100
112
26,500
520
145
120
